charging station FORCE SOS E-BIKE, 4P-2U,1B,1Bs+1Z

Product details

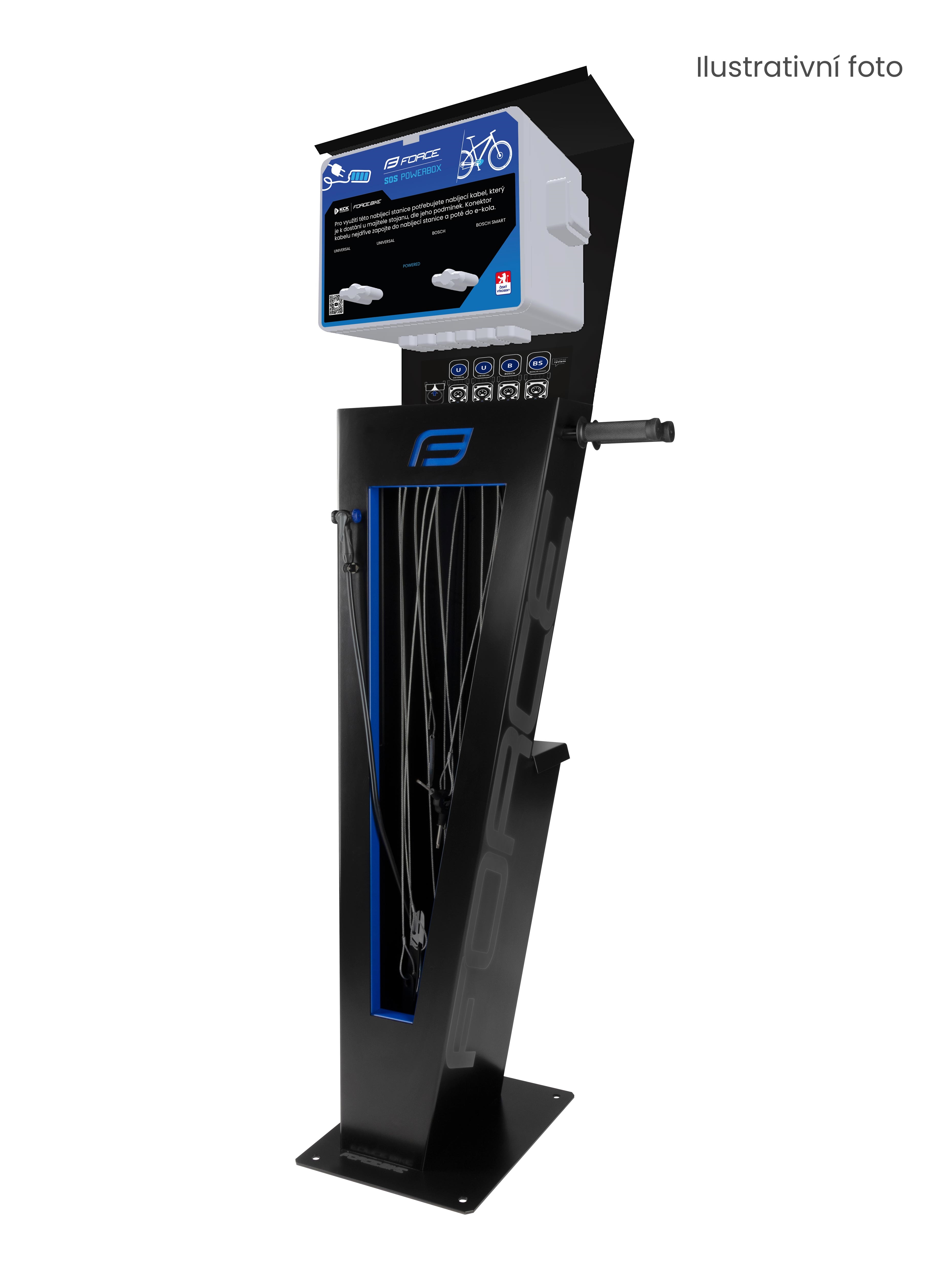

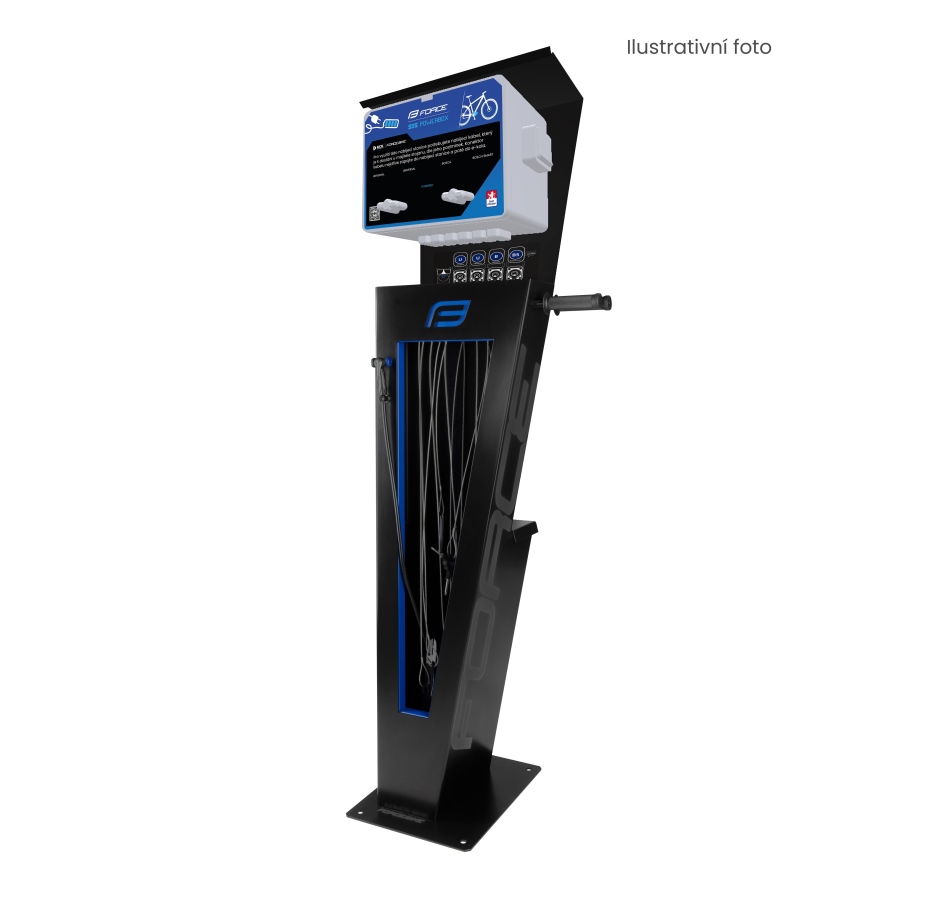

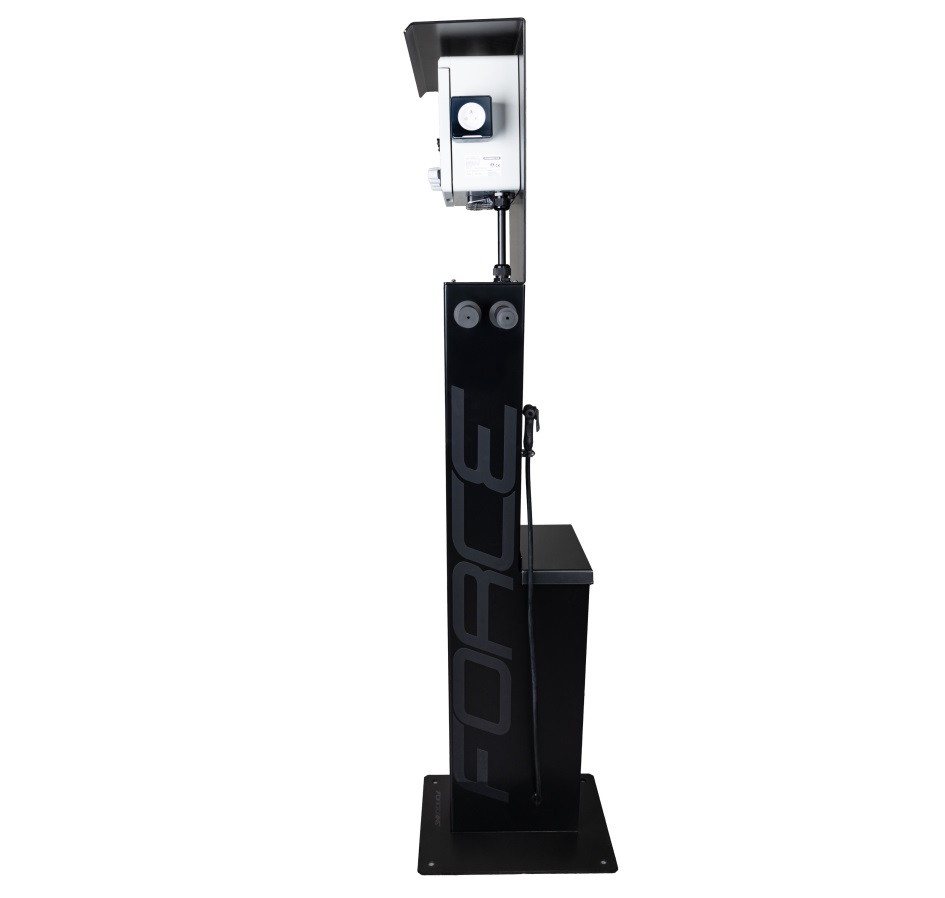

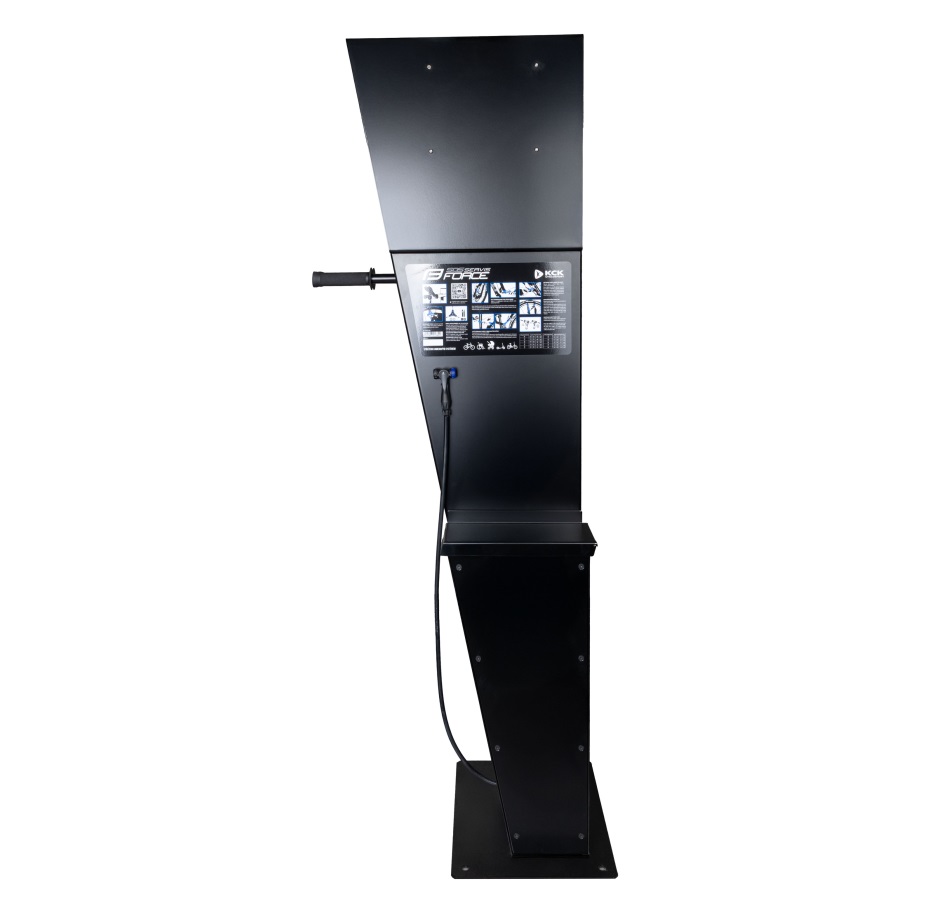

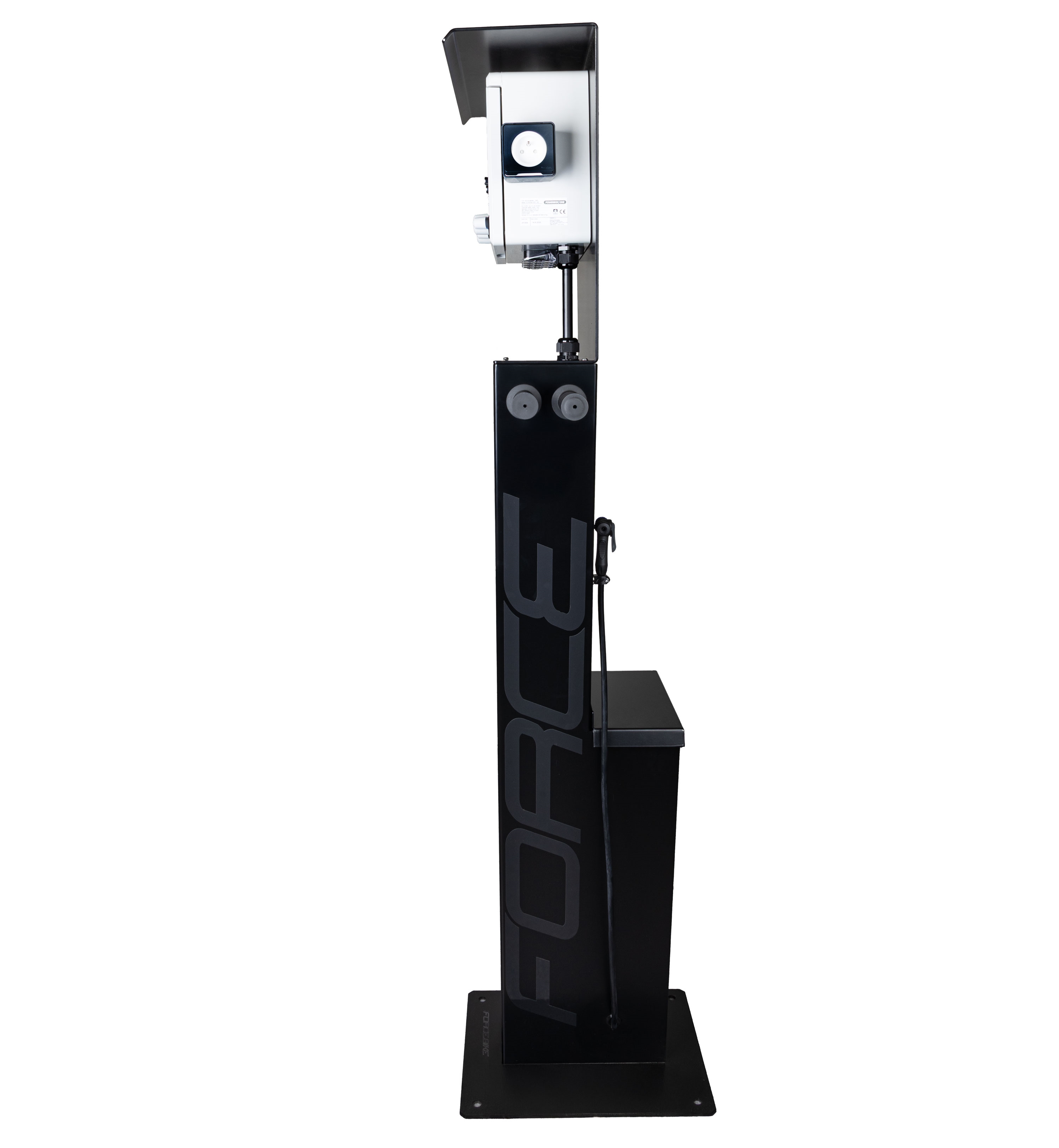

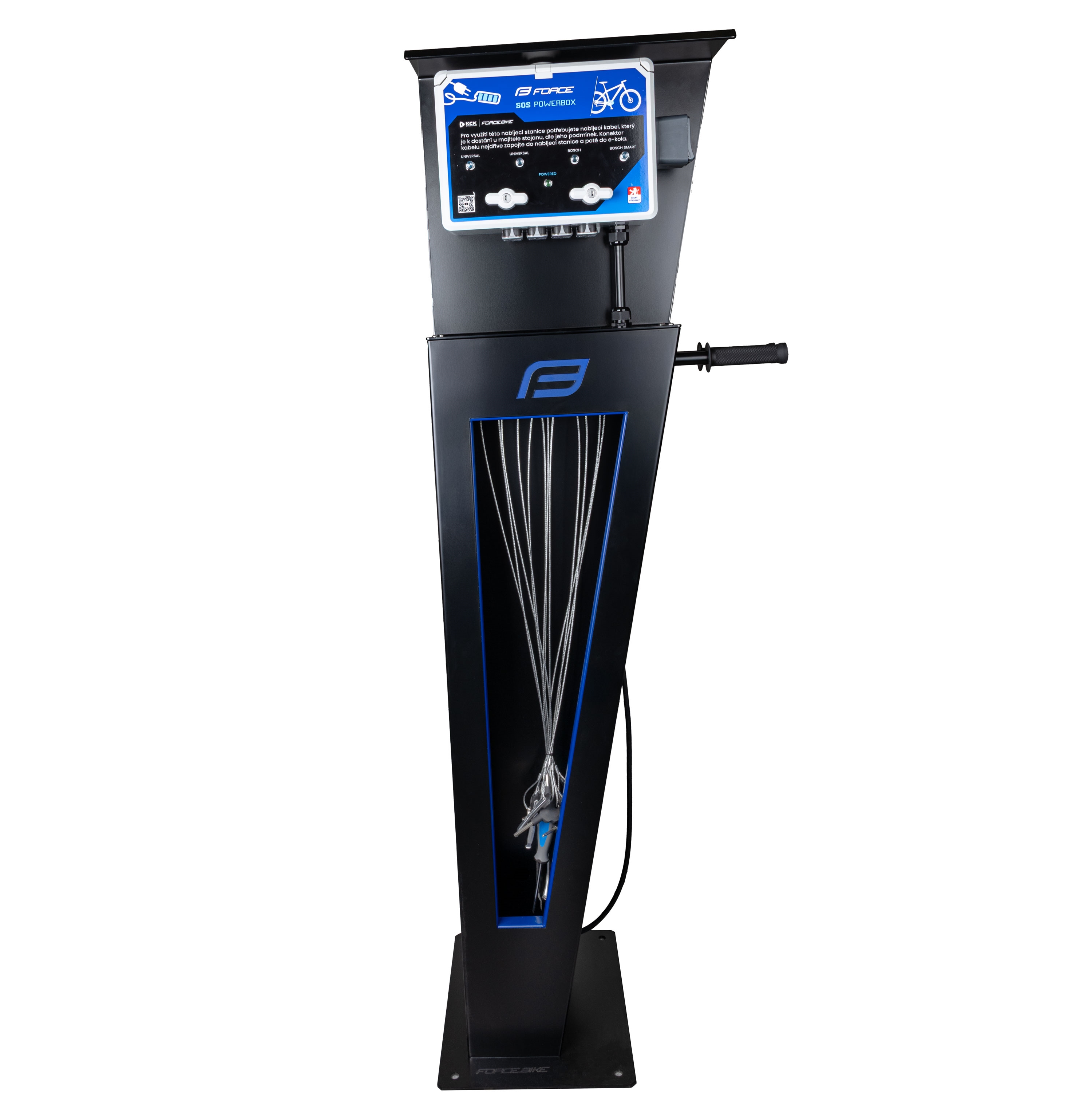

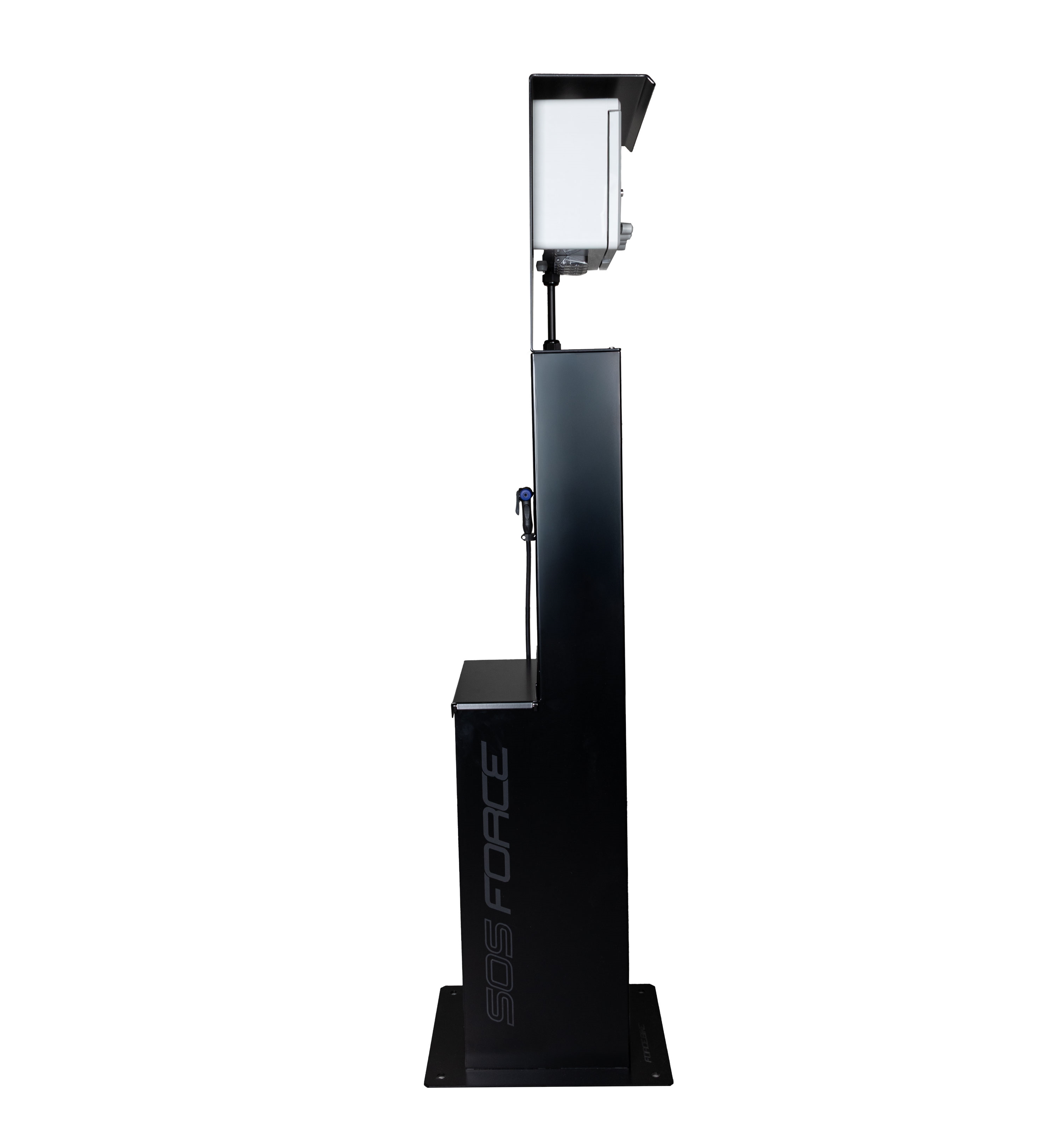

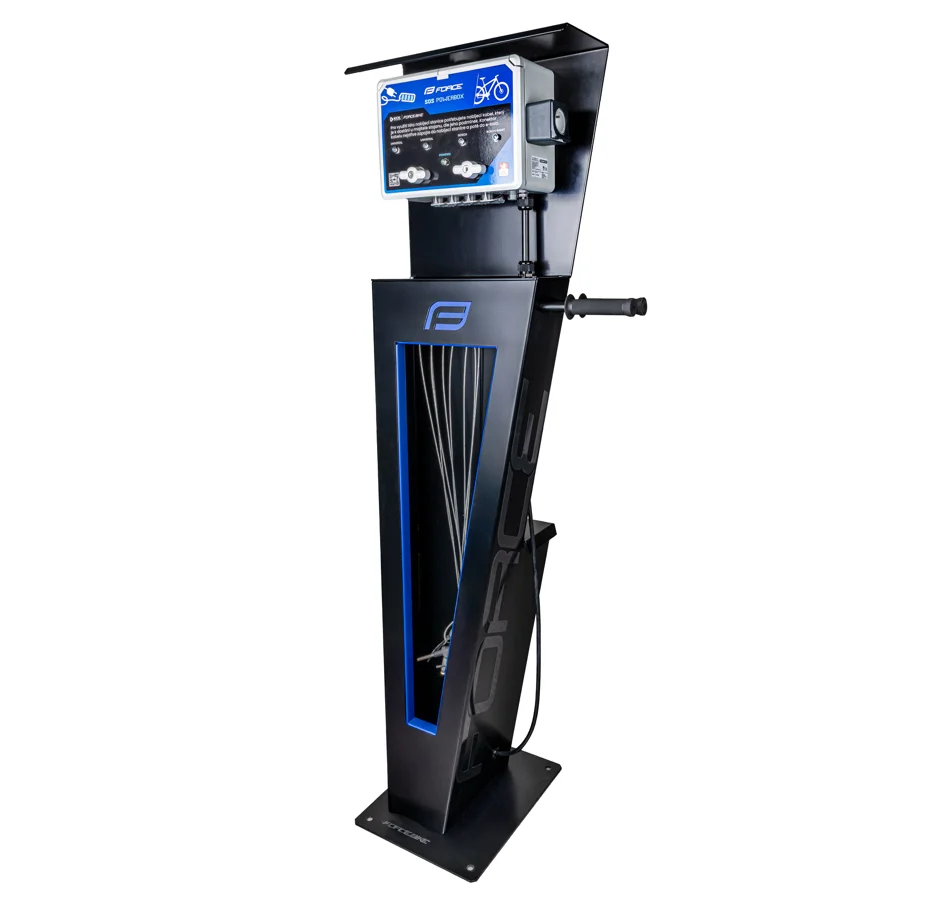

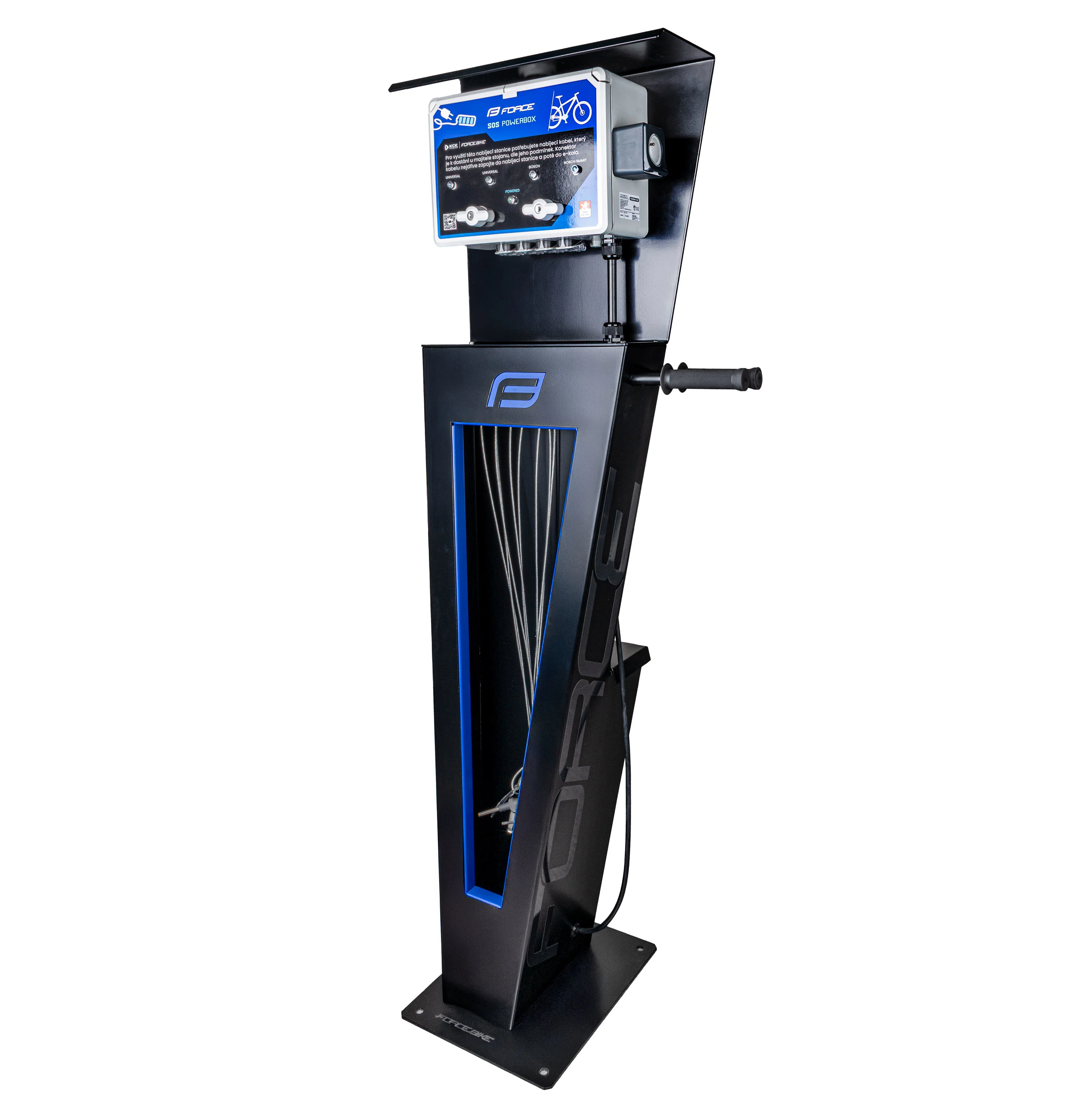

FORCE SOS E-BIKE charging stand

The ideal solution for cyclists and the general public. Used for charging electric bikes and for basic maintenance of bicycles, electric bikes, scooters, strollers and wheelchairs.

Suitable for installation indoors and outdoors - ideal for hotels, guest houses, restaurants, employee bike shops, department stores, information centres and home use. Installation is recommended in a location that is under camera footage.

KEY FEATURES:

Offers charging capability for up to 90% of electric bikes on the Czech market.
For the remaining 10%, the station is equipped with a 230V socket (charging with its own charging cable).
Possibility to charge up to 5 e-bikes at the same time.
Charging a 400 Wh battery from 10% to 30% takes approximately 30 minutes.
Negligible power consumption (0,5 - 1 CZK per 1 charge)
Tools for basic service maintenance

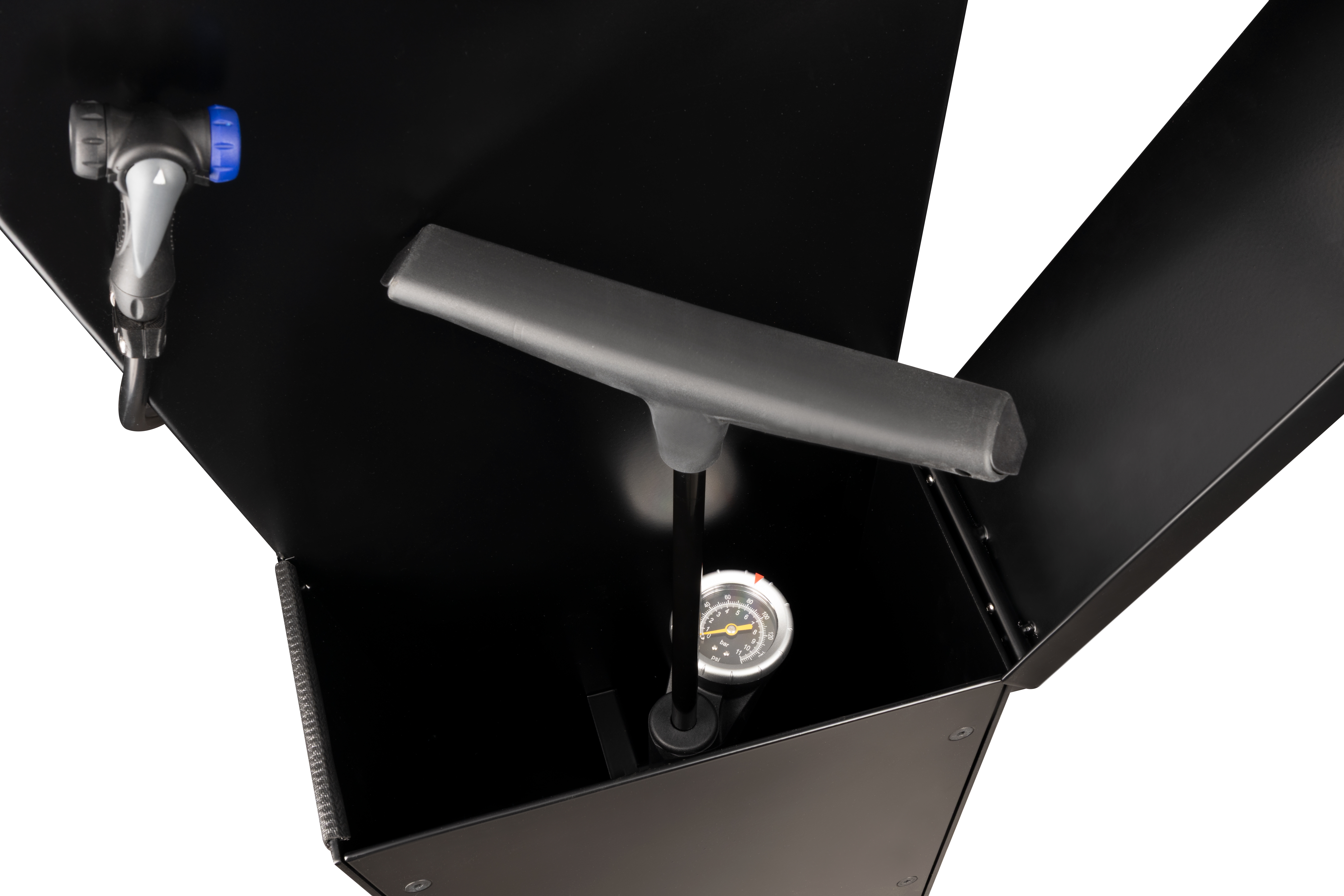

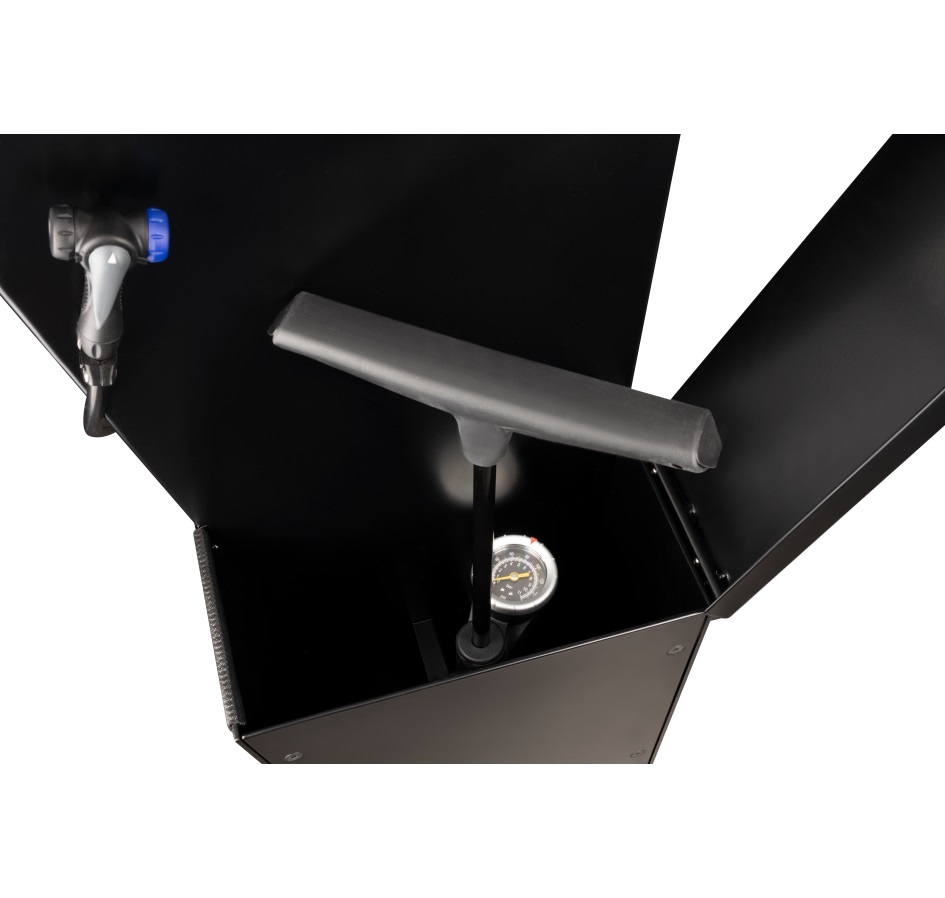

Inflator with pressure gauge for inflating the bicycle tube
Bike holder for comfortable work
Compact and robust design for outdoor/indoor use

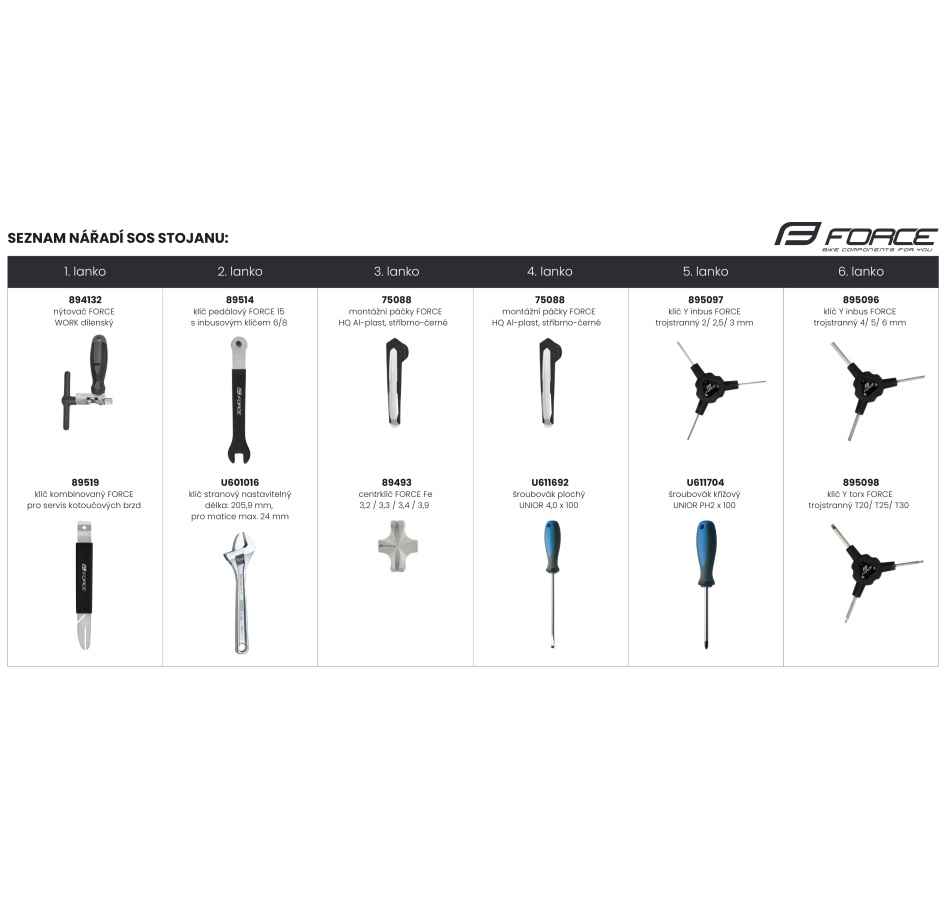

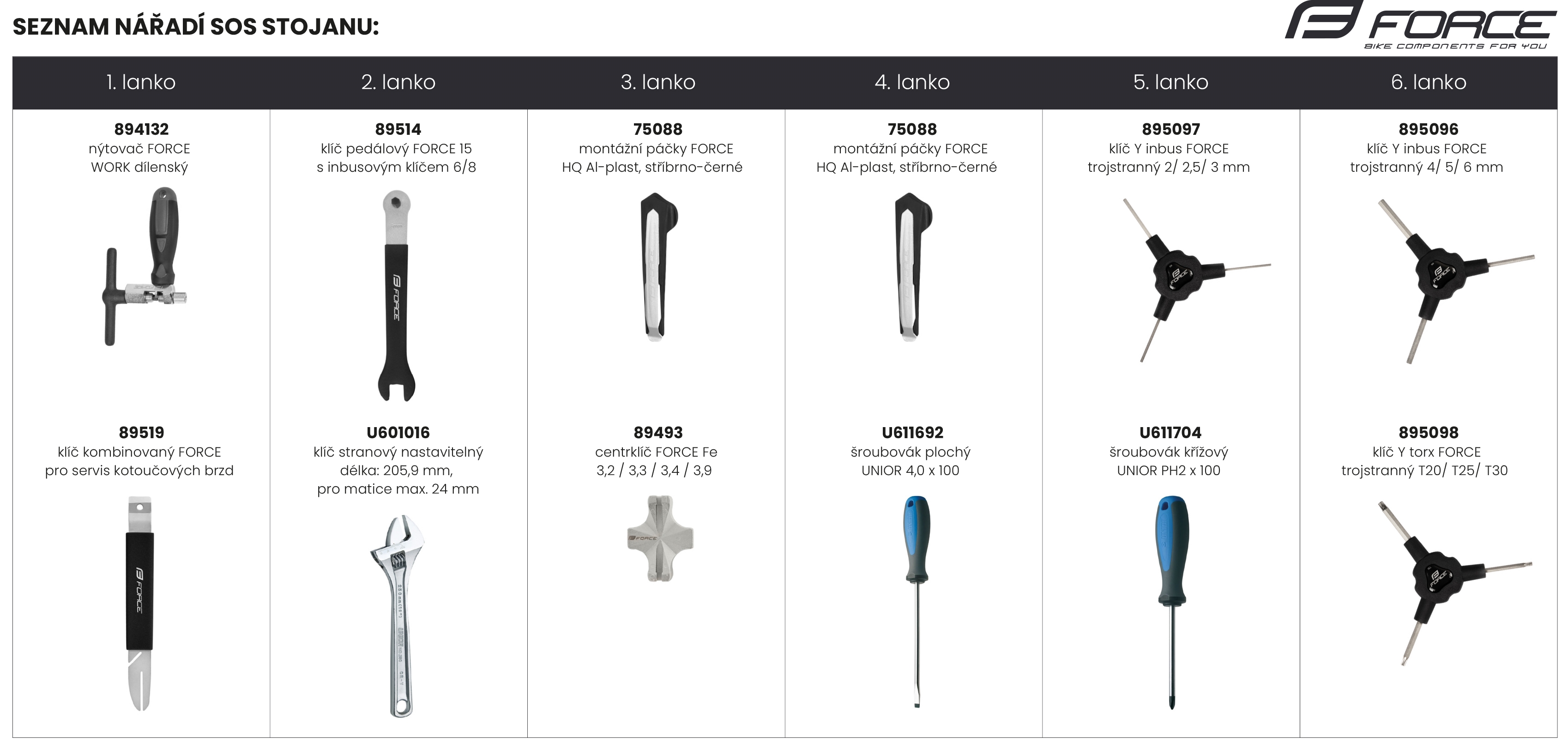

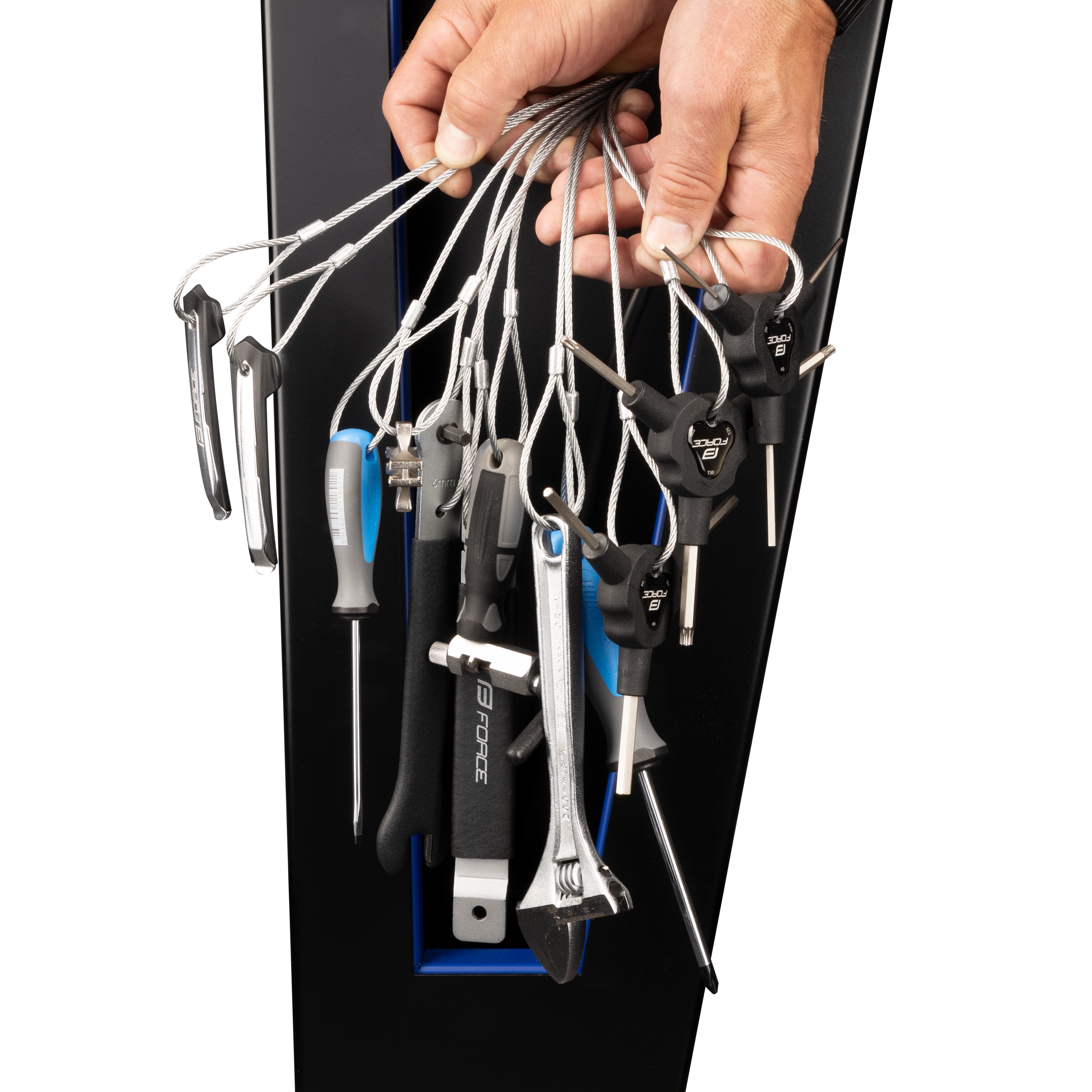

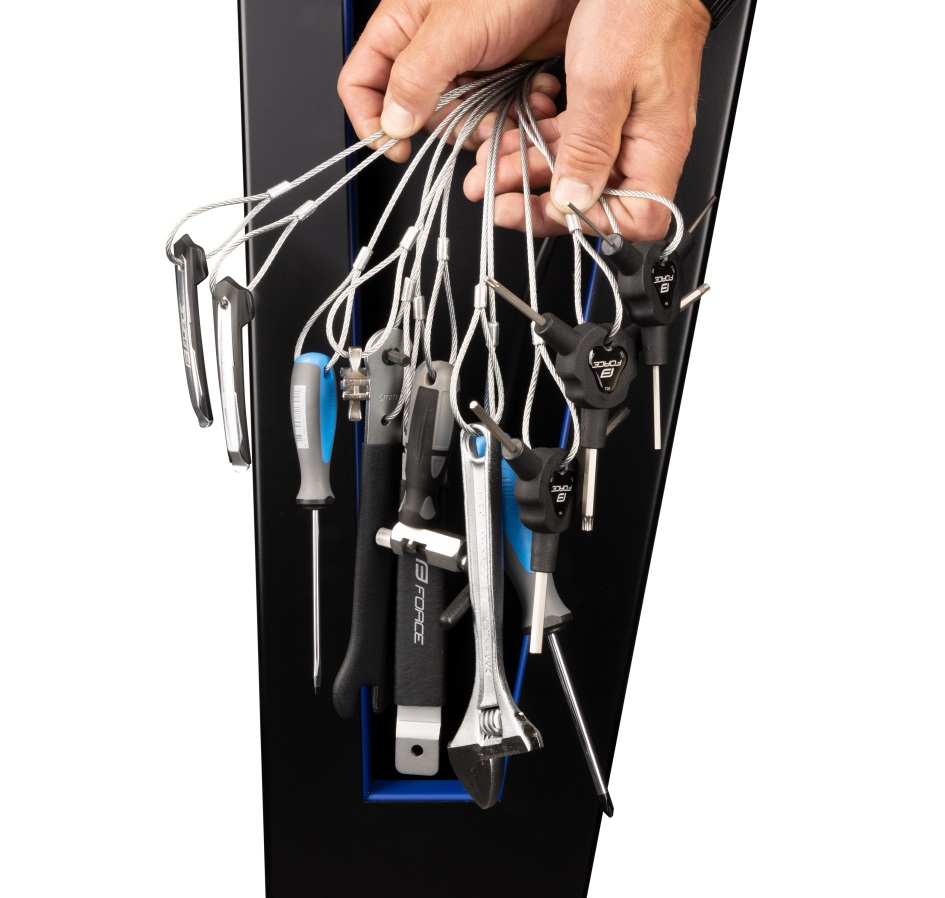

TOOLS FOR BASIC SERVICE:
aluminium workshop inflator FORCE PROFI STAR with pressure gauge up to 11bar (160 PSI)
for all types of valves - (AV - moto, FV - galus, DV - classic)
2x aluminium mounting lever
1x pedal wrench 15 with inbus wrench 6/8
1x adjustable side wrench, for nuts max. 24mm
1x torx three-sided T20/ T25/ T30
1x inbus three-sided 4/ 5/ 6
1x inbus three-sided 2 / 2,5 / 3
1x centering wrench Fe 3,2/ 3,3/ 3,4/ 3,9
1x Phillips screwdriver
1x flathead screwdriver
1x combination wrench for disc brake service
1x riveter, workshop

the stand and charging station is completely made in the Czech Republic
the stand is covered with black reflective stickers

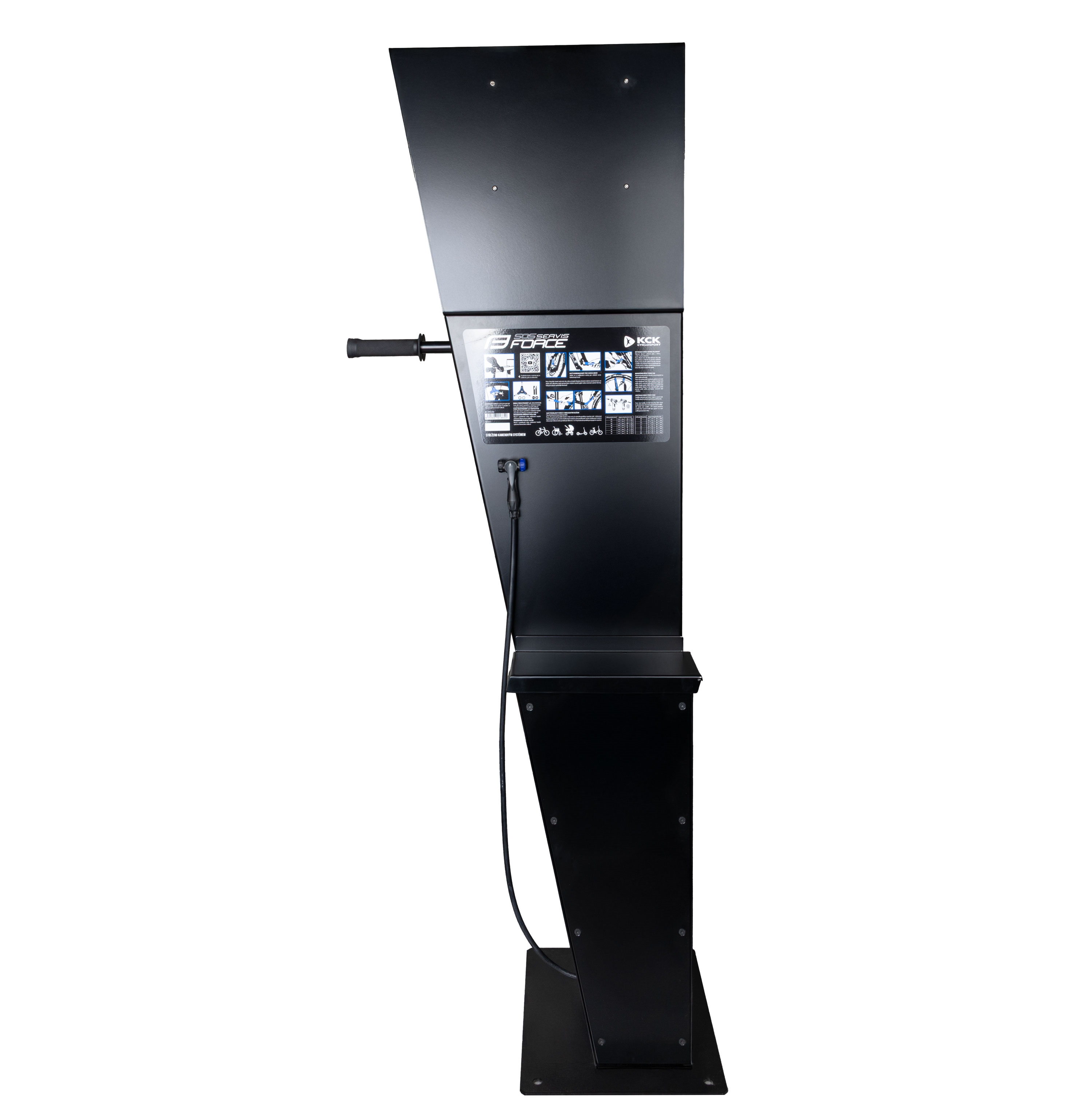

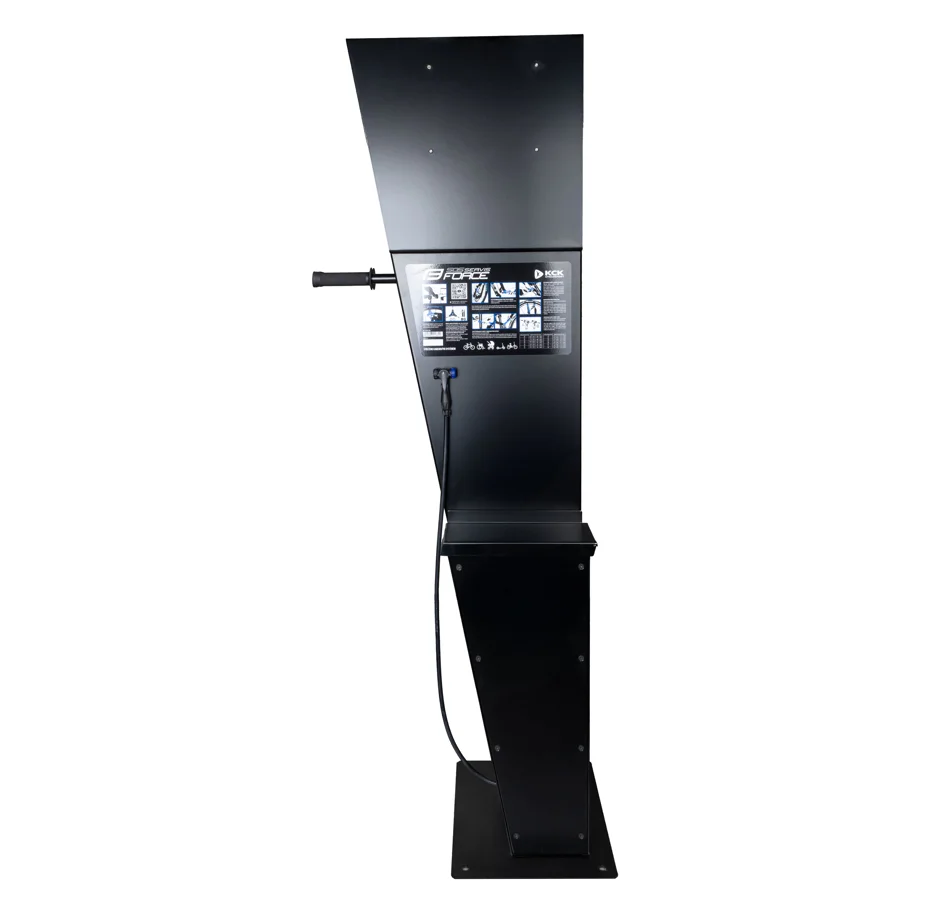

the back side of the stand contains a label with a QR code
the label is supplied in Czech language - for a fee it is possible to supply an English/German version
the QR code on the label refers to instructional videos for individual repairs

Technical parameters of the stand:
Material of construction: iron
Surface finish: powder coating (RAL)
Thickness of construction: 3 mm
Dimensions (w x h x d): 450 x 1320 x 660 mm
Material of cables: zinc
Weight of the stand: 40 kg
Load capacity of the holder: up to 30 kg
Dimensions of the base: steel, 450 x 350 mm, 4 mounting holes

Technical parameters of the bracket:
Material of construction: iron
Surface finish: powder coating (RAL)
Thickness of construction: 4 mm
Dimensions: 195 x 456 x 511 mm
Weight of bracket: 10.5 kg

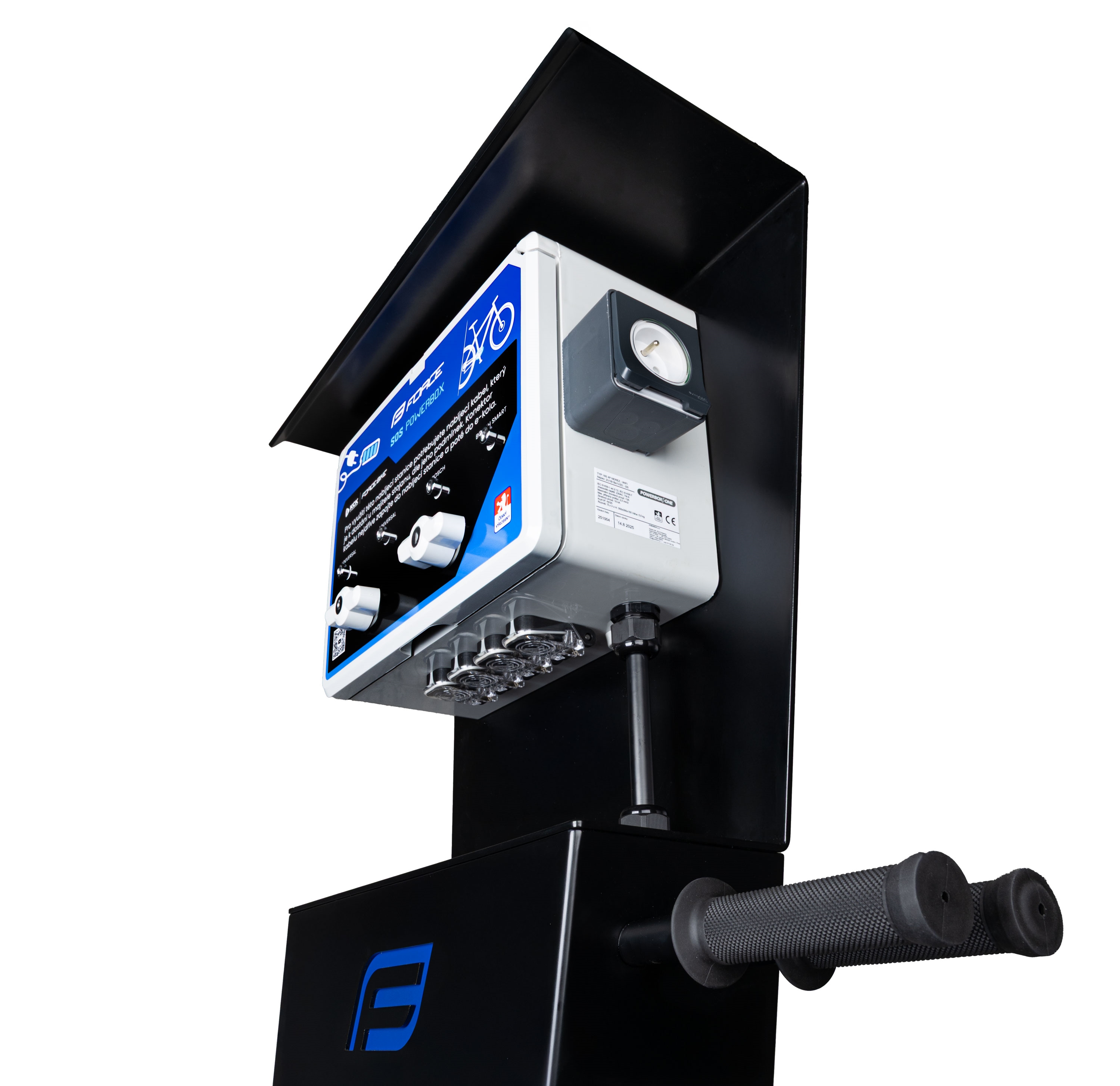

Technical parameters of the charging station:
Construction material: plastic cabinet
Dimensions (w x h x d): 250 × 350 × 160 mm
Weight: 4.5 kg
Power system: 230 VAC - EU fork or CYKY cable
Current protector: yes
230V socket limitation: max. 5 A (1 socket)
Voltage tolerance: -10%+10% 230V AC
Installed power consumption max.: 1.5 kW
Input protection: max. 16 A
Short-circuit resistance: 6 kA
Degree of protection: IP54 Standards.

The charging station is designed for charging electric bikes and scooters only.
Connecting devices with a power consumption higher than 5A (electric cars, lawnmowers, caravans, etc.) can damage the station.
The charging station must be switched off when the ambient temperature drops below 5°C by the main circuit breaker.

Cables for charging electric bikes:
- “A” XLR 3M
- “B” Jack 21 with reducer
- “B” Jack 21
- “D” RCA
- “E” Bosch
- “F” Bosch Smart
